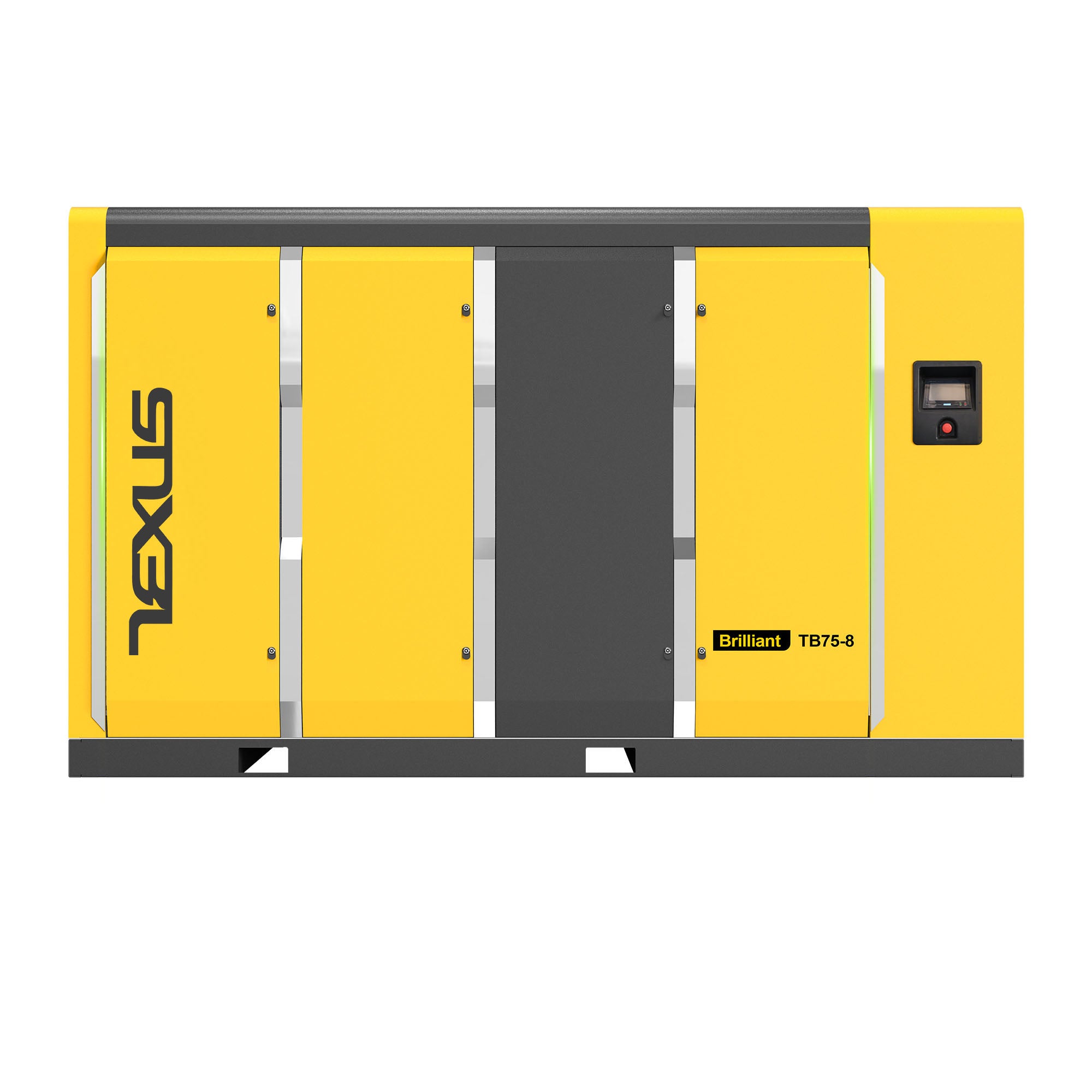

TB Series 7.5HP 5.5KW TEXUS Screw Air Compressor | 29CFM @ 116PSI | 230V 3-Phase 60Hz | RP3/4" | VSD
Advantages and application areas of bipolar screw air compressors
Bipolar screw air compressors are a type of high-efficiency and energy-saving air compressor that uses two-stage compression technology. Compared with single-stage screw air compressors, they have higher energy efficiency and stability. The following is an analysis of their core advantages and main application areas:
I. Core advantages of bipolar screw air compressors
1. Higher energy efficiency and significant energy saving
Two-stage compression reduces energy consumption:
After the air is initially compressed at the low-pressure stage, it enters the high-pressure stage for secondary compression, reducing the compression ratio and reducing power consumption.
Compared with single-stage screw machines, it saves about 10%~15% energy and has lower long-term operating costs.
Isothermal compression is more efficient:
Two-stage compression reduces temperature rise, approaches isothermal compression, reduces heat loss, and improves efficiency.
2. More stable air pressure output
Small pressure fluctuations:
Two-stage compression makes the exhaust pressure more stable, which is suitable for industries with high requirements for air pressure stability (such as precision manufacturing and electronics industries).
Reduced load rate:
Single-stage compressors are prone to overheating under high loads, while the bipolar structure disperses the heat load and extends the life of the equipment.
3. Longer service life
Reduced load on bearings and rotors:
Two-stage compression shares pressure, reduces mechanical wear of single-stage screws, and extends the life of core components (such as rotors and bearings).
Better oil temperature control:

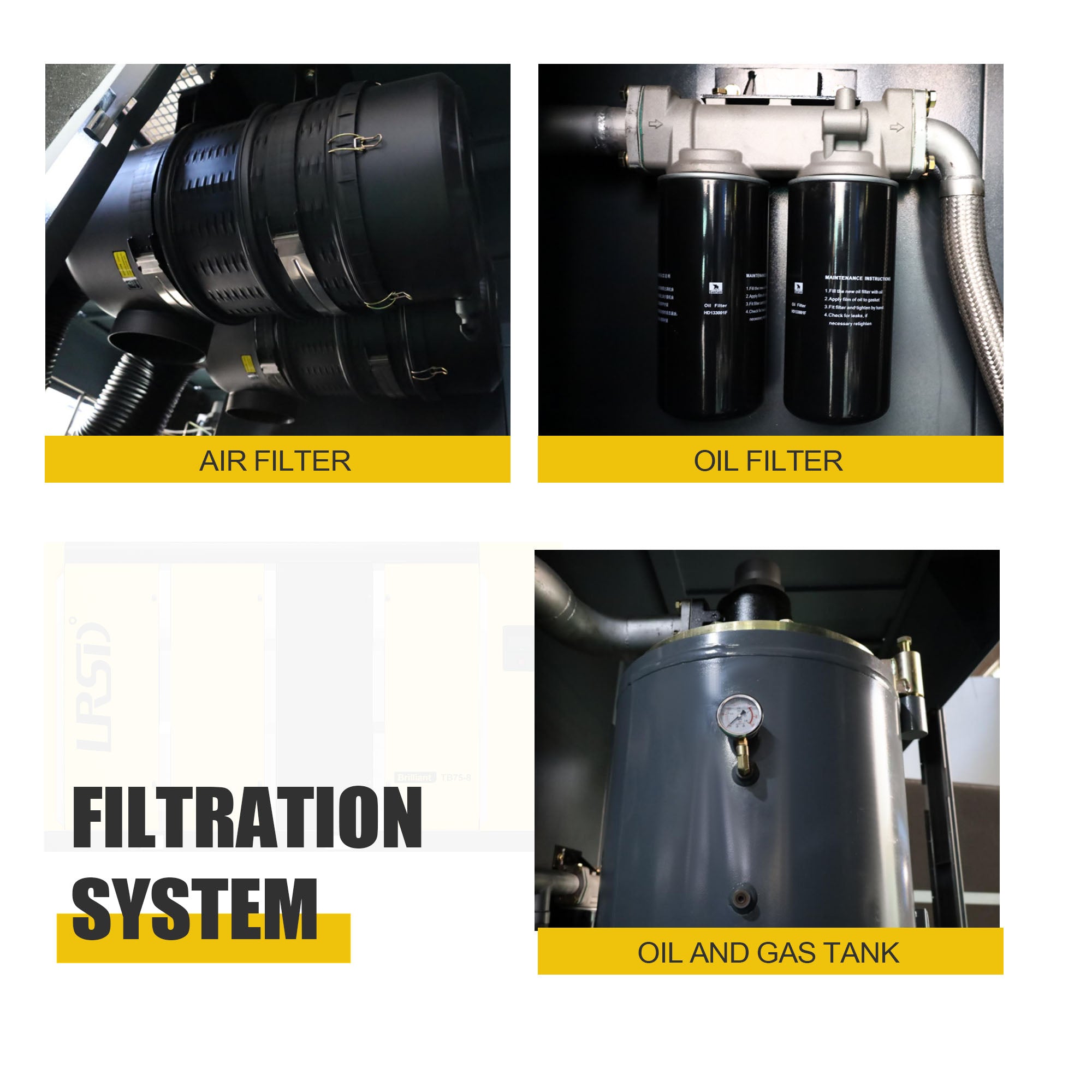

Built-in high-efficiency cooling system reduces the degradation of lubricating oil due to high temperature and reduces maintenance frequency.
4. Adapt to a wider range of working environments
Stable operation in high altitude and high temperature environments:
Bipolar compression can adapt to a wide pressure range of 0.6~1.3MPa, suitable for different working conditions.
Low noise design:
Optimized casing structure and silencer technology, noise is usually controlled at 65~75dB, suitable for indoor installation.
5. Intelligent control

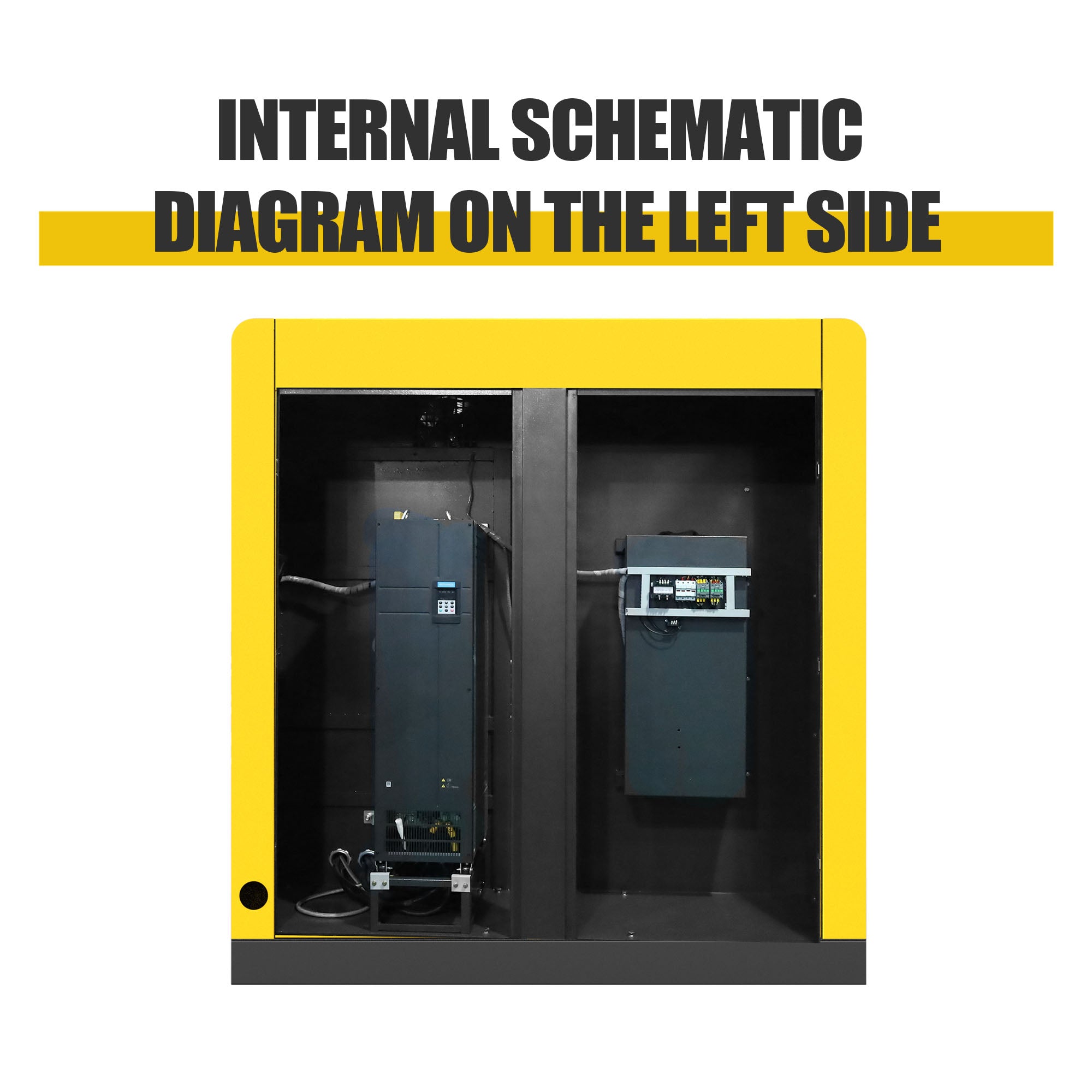

Frequency conversion + PLC control (some high-end models):
The speed can be automatically adjusted according to gas demand to avoid no-load energy consumption and further save energy.
Remote monitoring and fault warning:
Support Internet of Things (IoT) access, real-time monitoring of operating status, and prevention of sudden failures.
