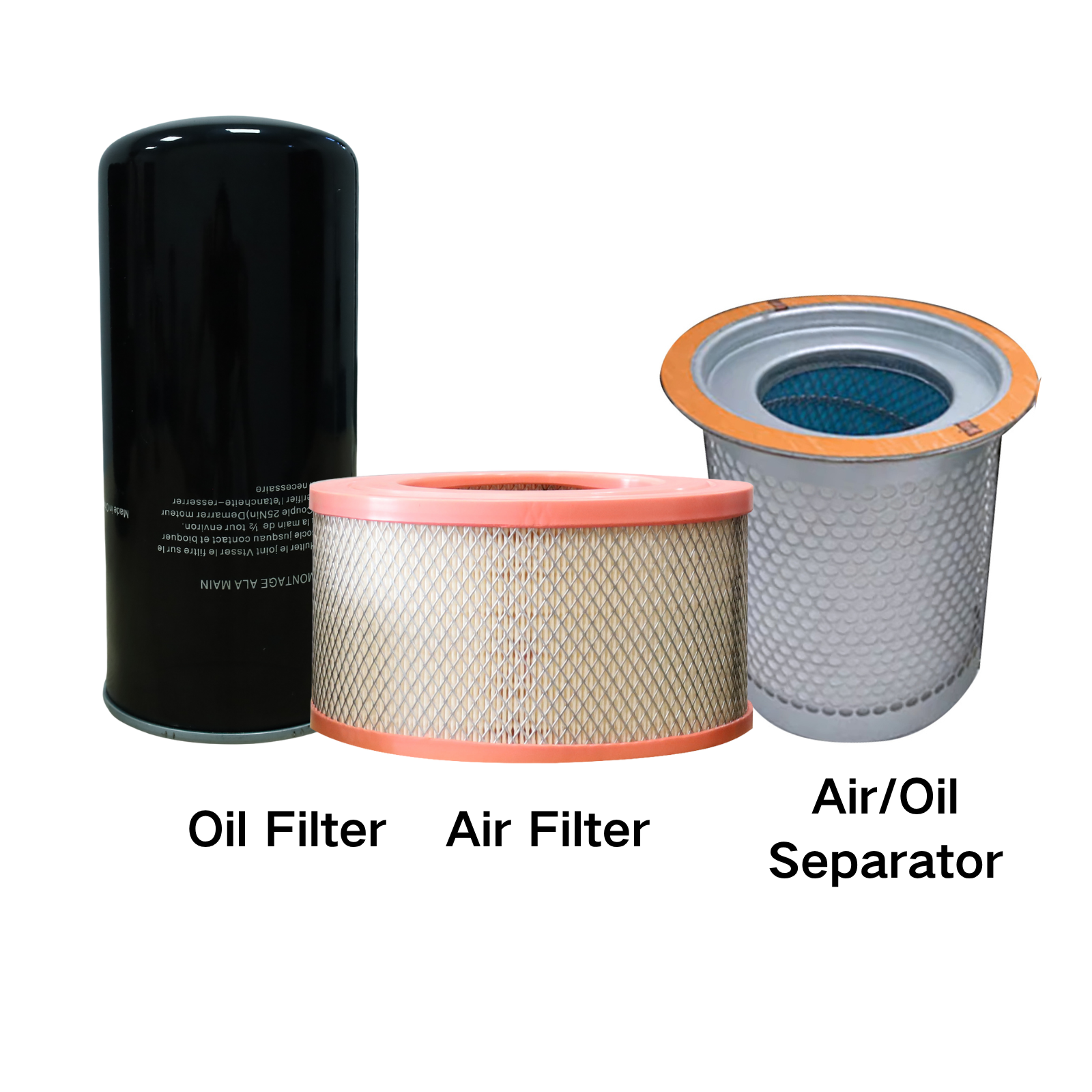

Maintenance Service Kit for 50 HP Rotary Screw Air Compressor

For:50HP Screw  Air Compressor

Old filter elements can cause compressor problems and should be replaced to keep the unit running at its highest level,Improves engine life,

Featuring a Proven Durable Design
Designed To Allow Air to Be Pumped Cleanly and Efficiently

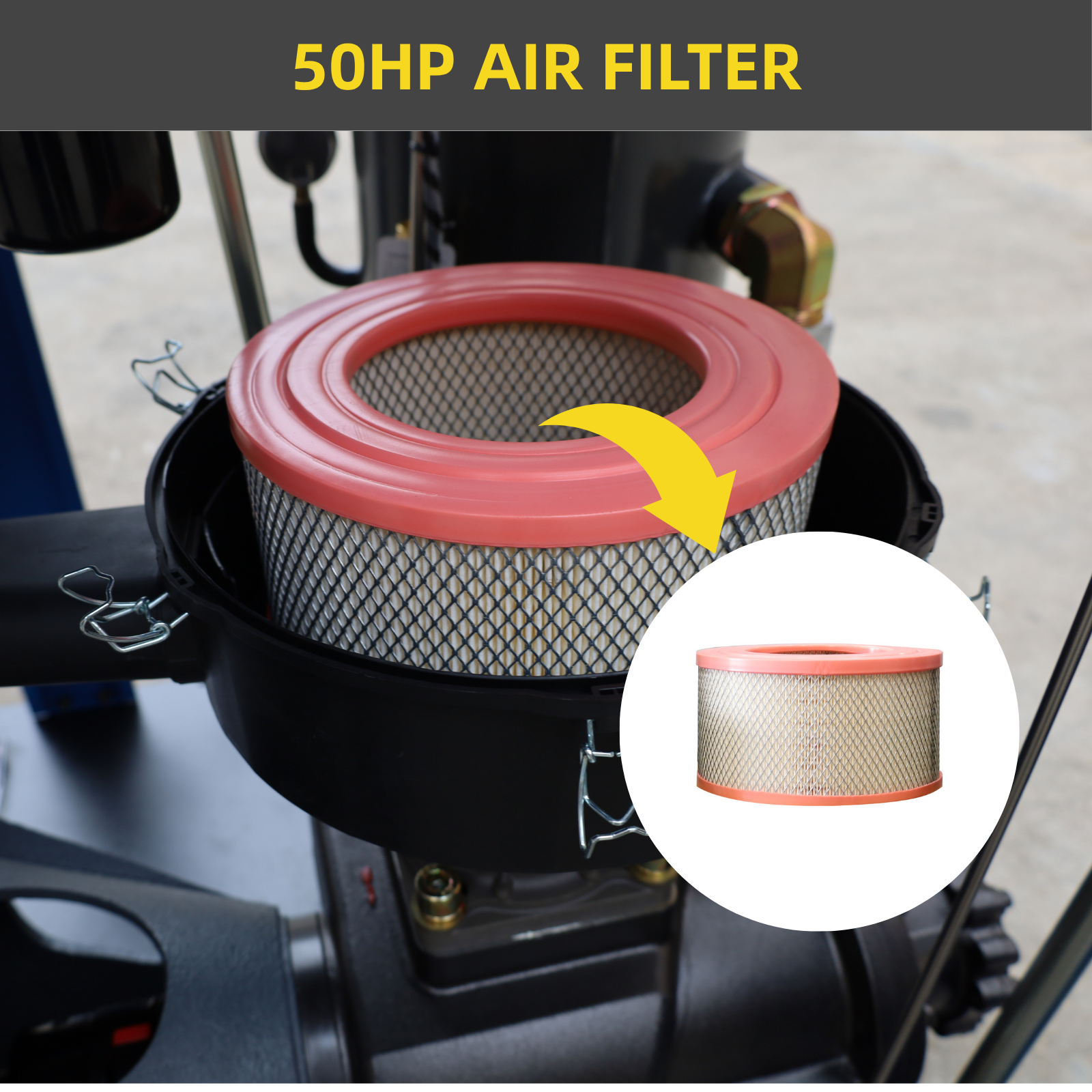

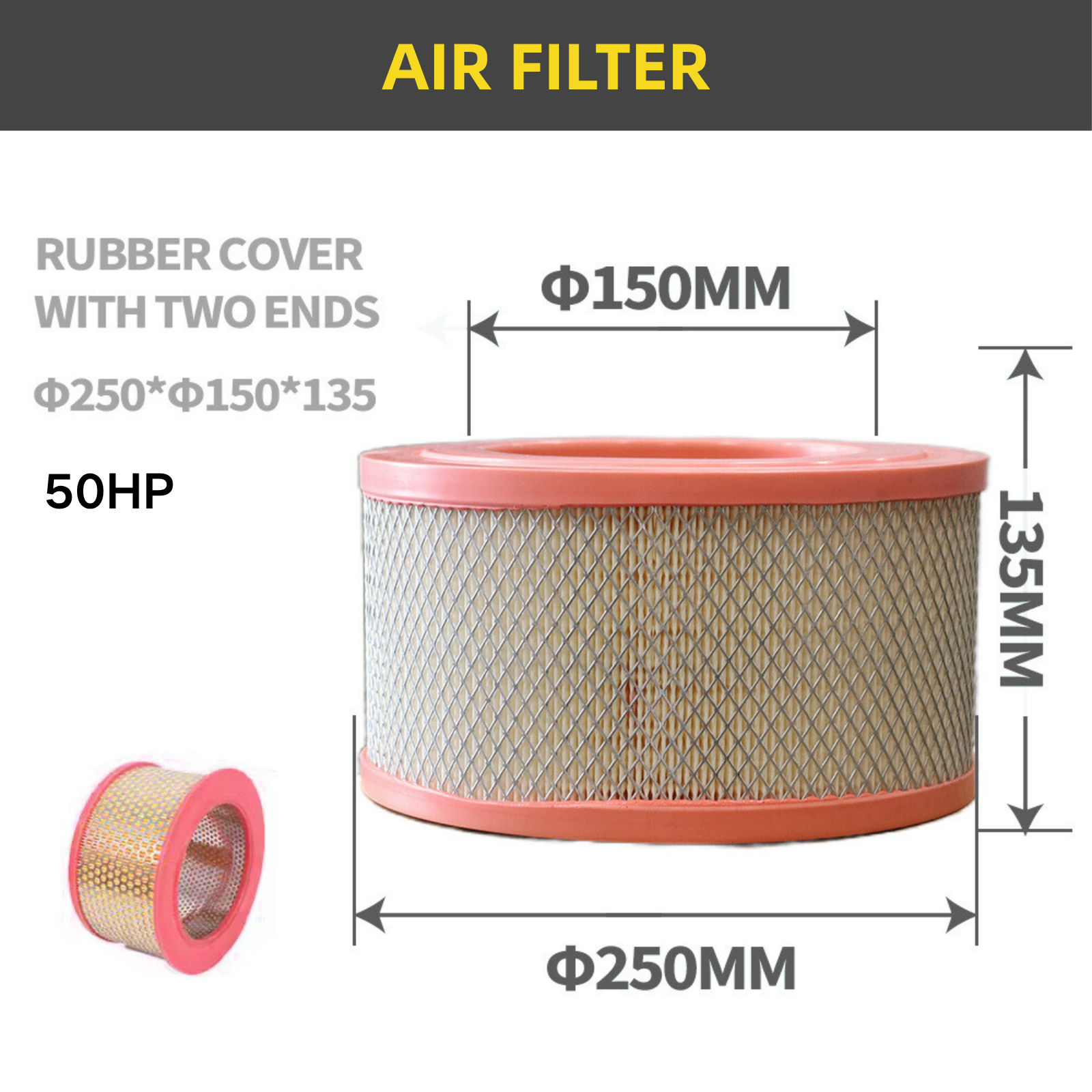

AIR FILTER ELEMENT

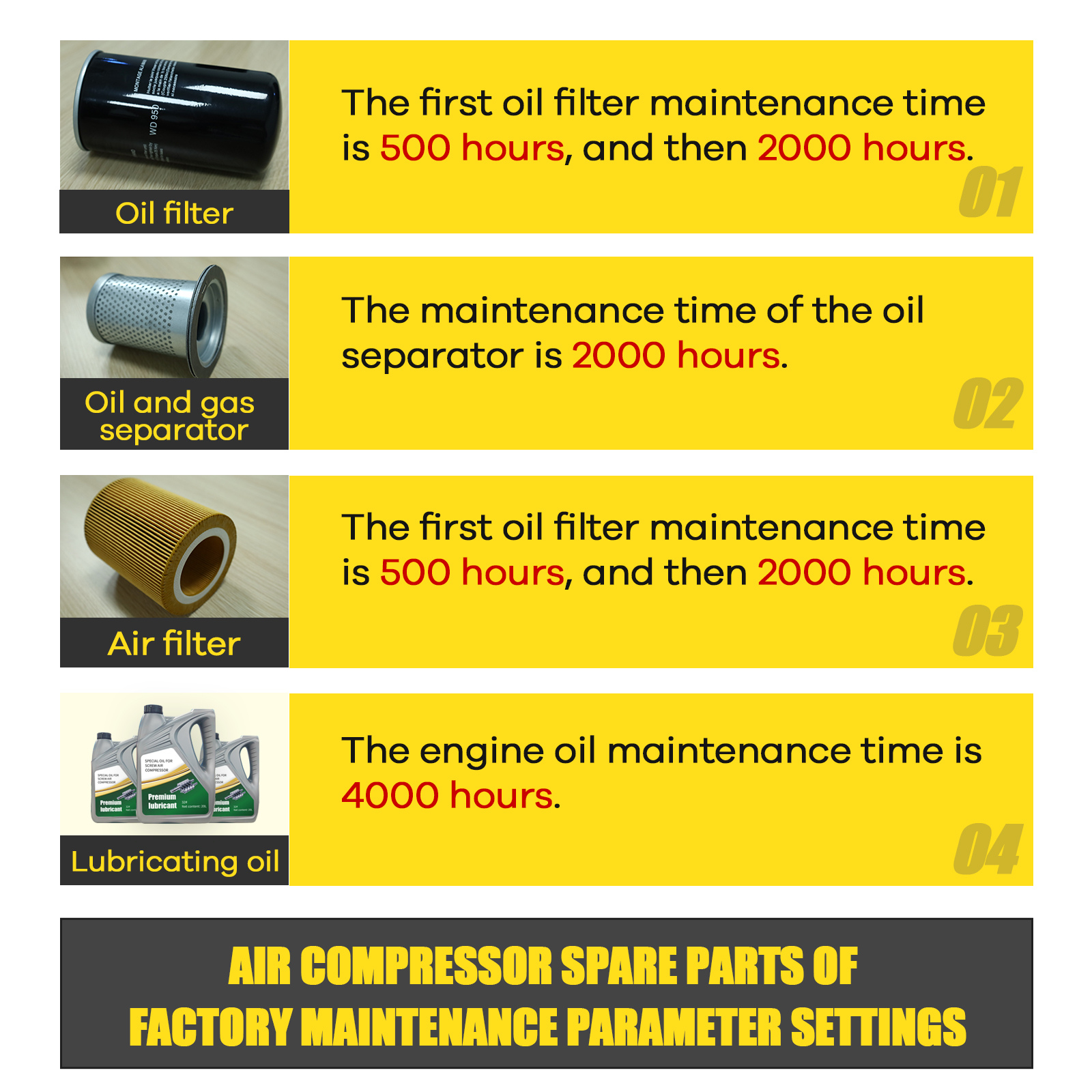

1.The first maintenance is to replace it after 500 hours, andthen it needs to be replaced after about 3000 hours of use.and dust needs to be blown every 500 hours;
2. The air filter element can only be replaced after stoppingand relieving the pressure,
3. Do not let foreign objects fall into the air inlet.

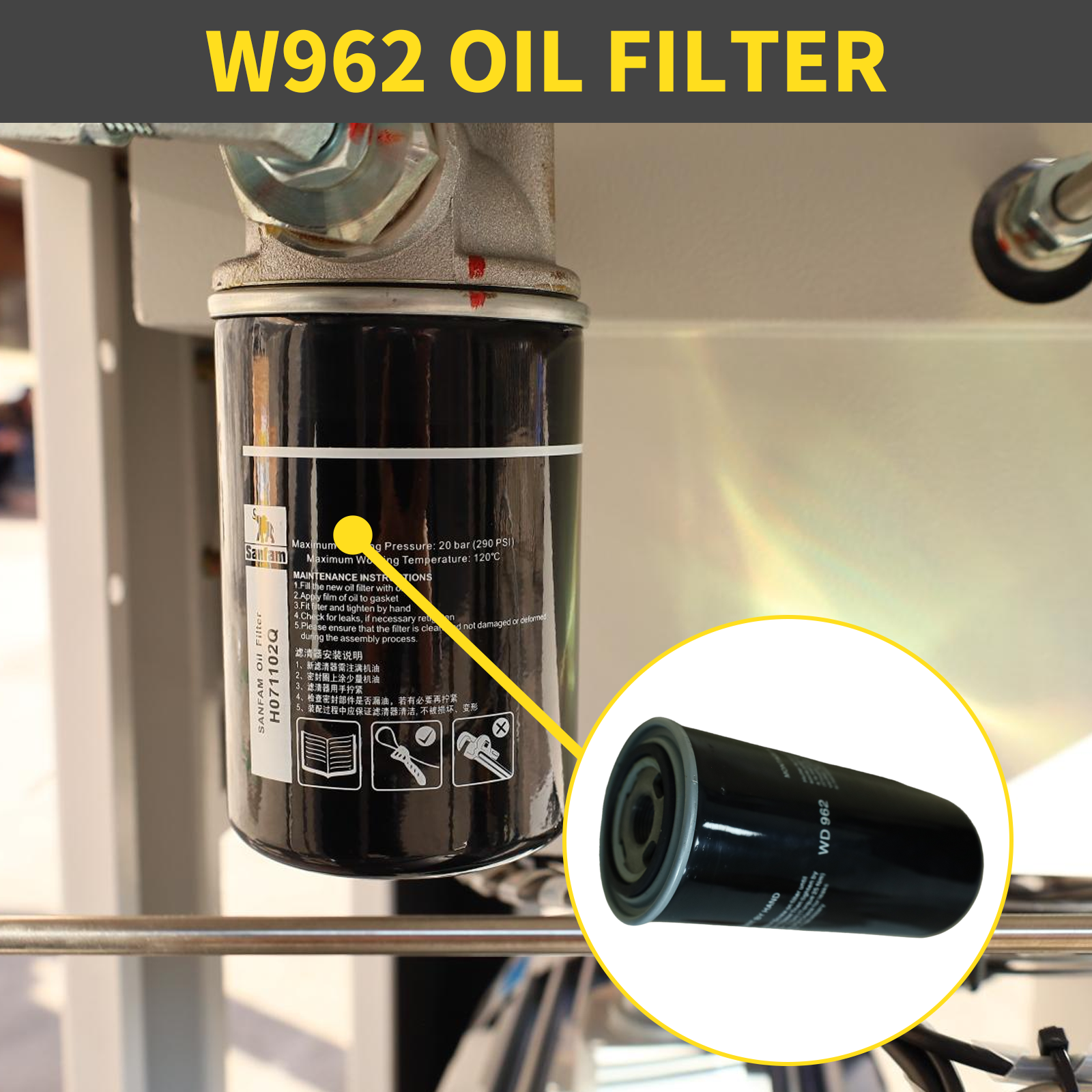

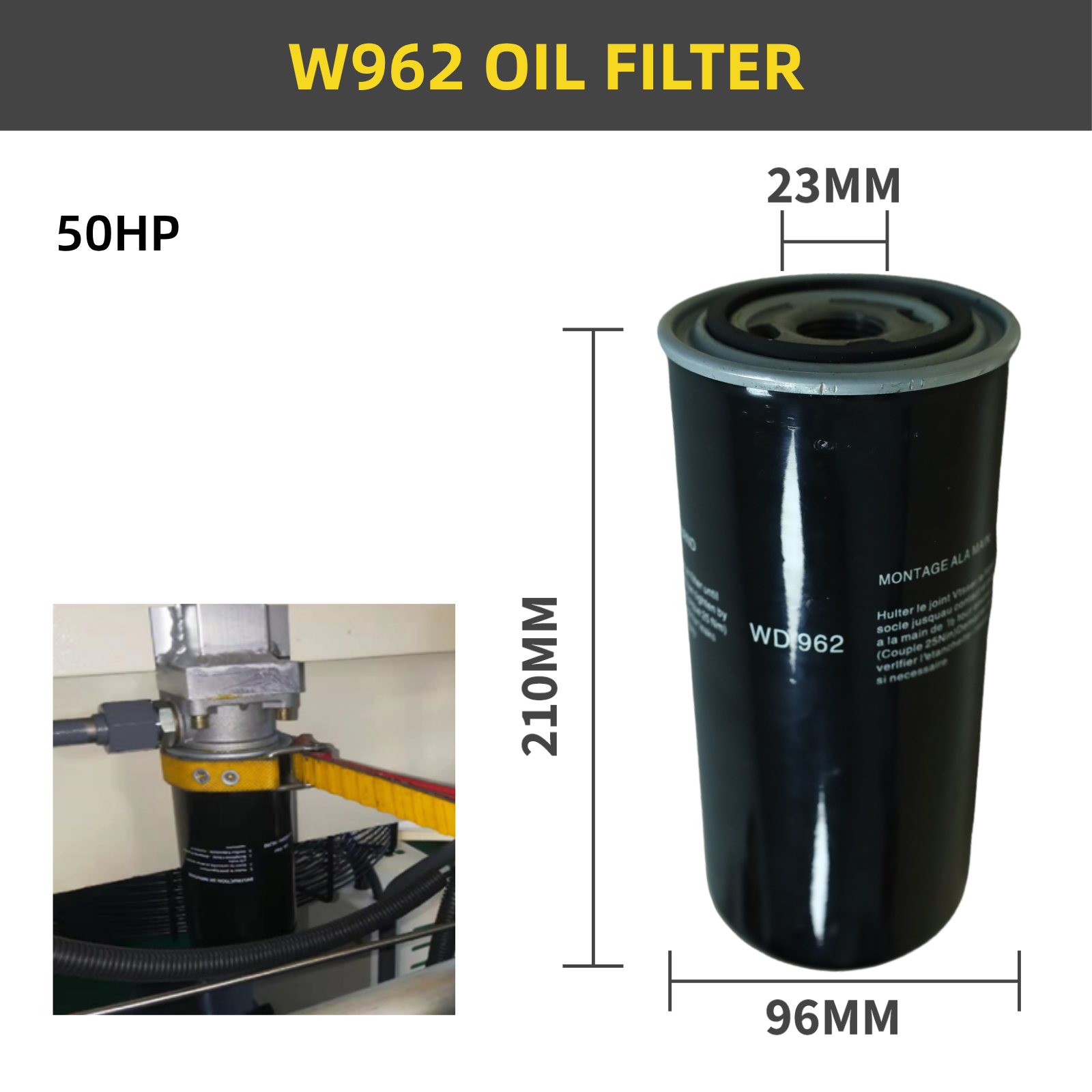

OIL FILTER ELEMENT
1. The first maintenance is to replace it after 500 hours, andthen it needs to be replaced after about 3000 hours of use,

2. The oil filter element can only be replaced after stoppingand relieving the pressure;

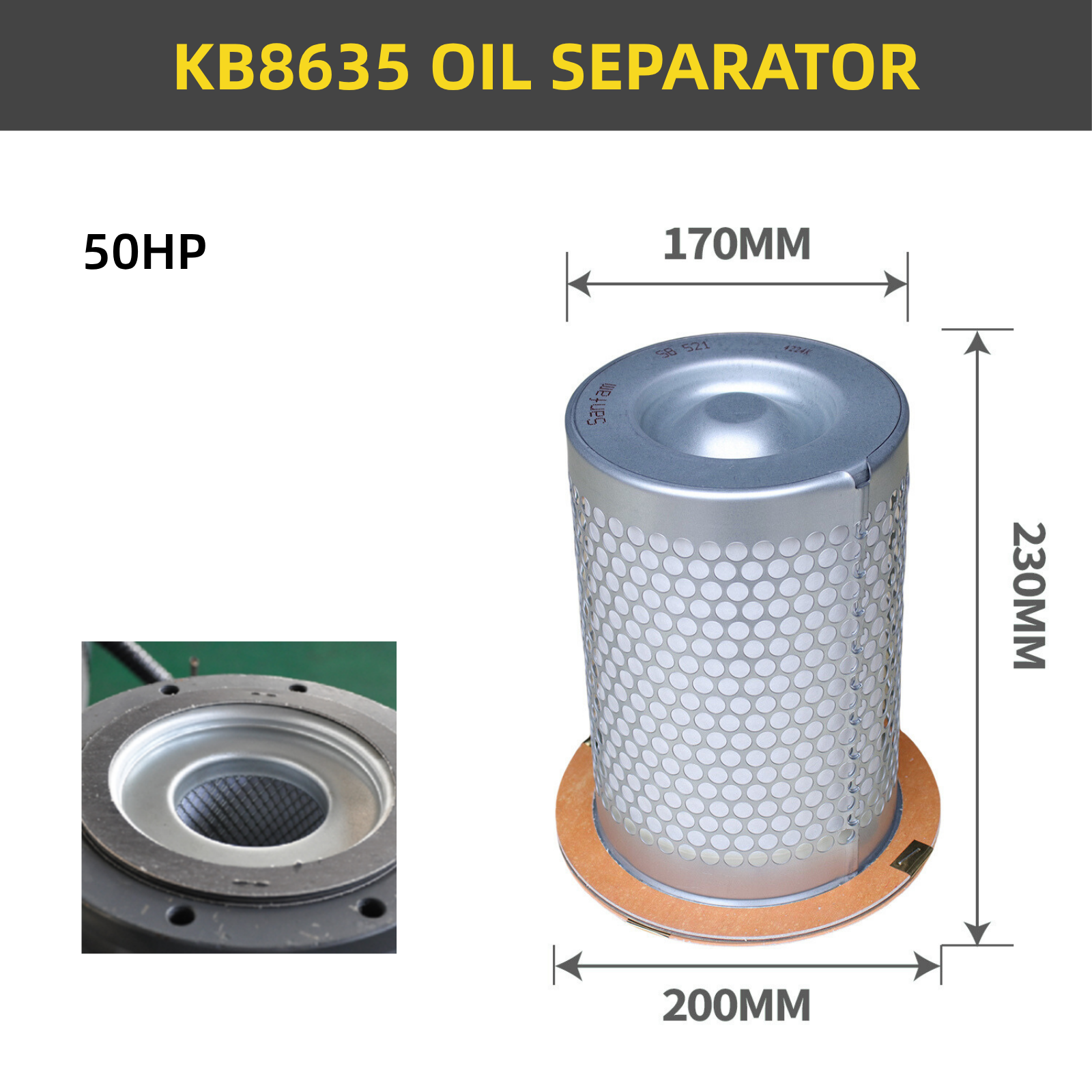

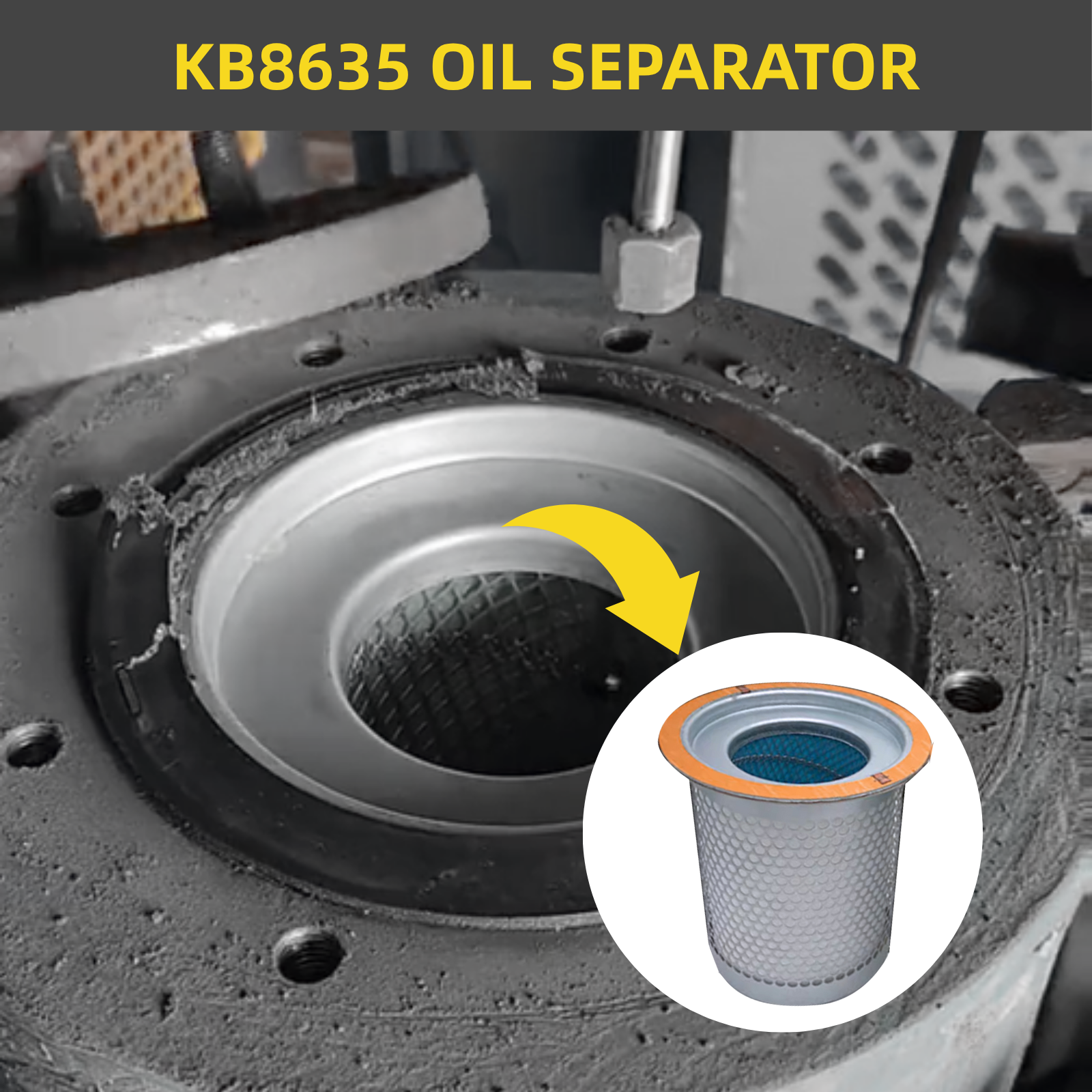

BUILT-IN OIL SEPARATOR
1. The first maintenance is to replace it after 500 hours, andthen it needs to be replaced after about 3000 hours of use,
2. The oil separator can only be replaced after stopping andrelieving the pressure;
